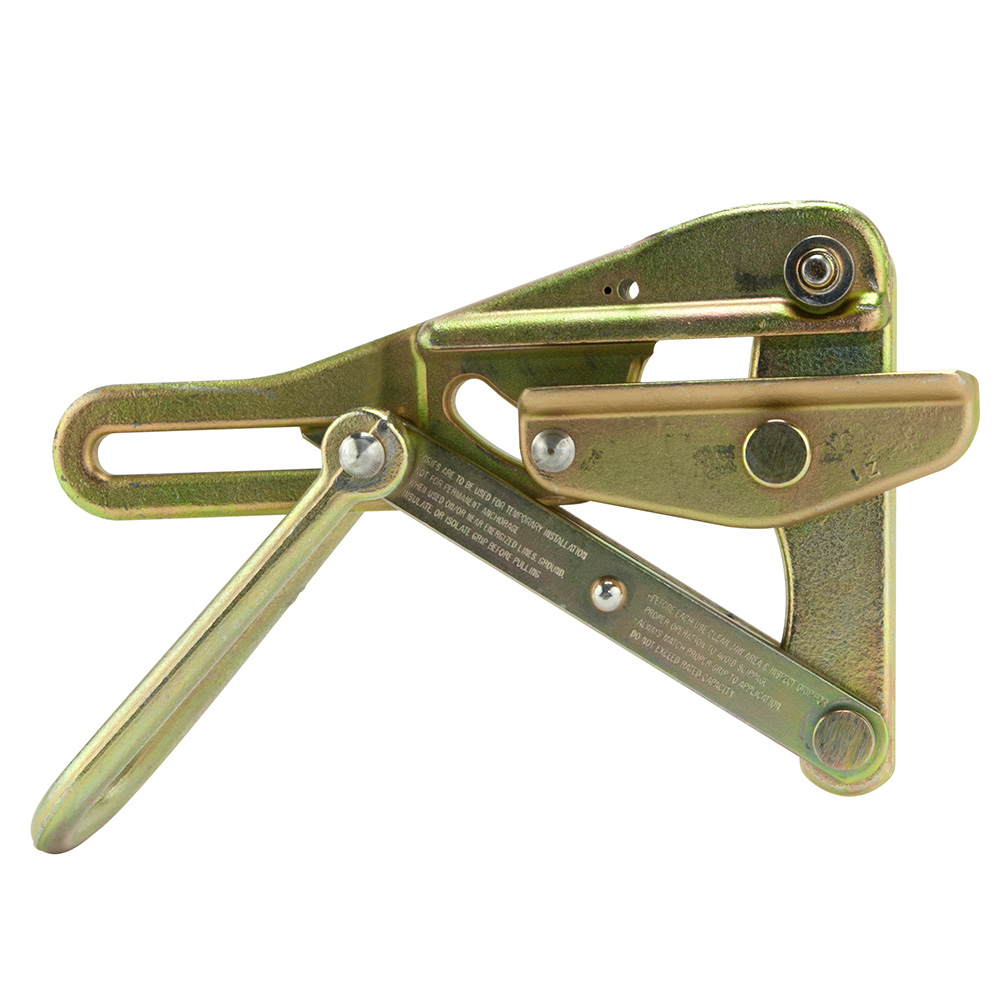

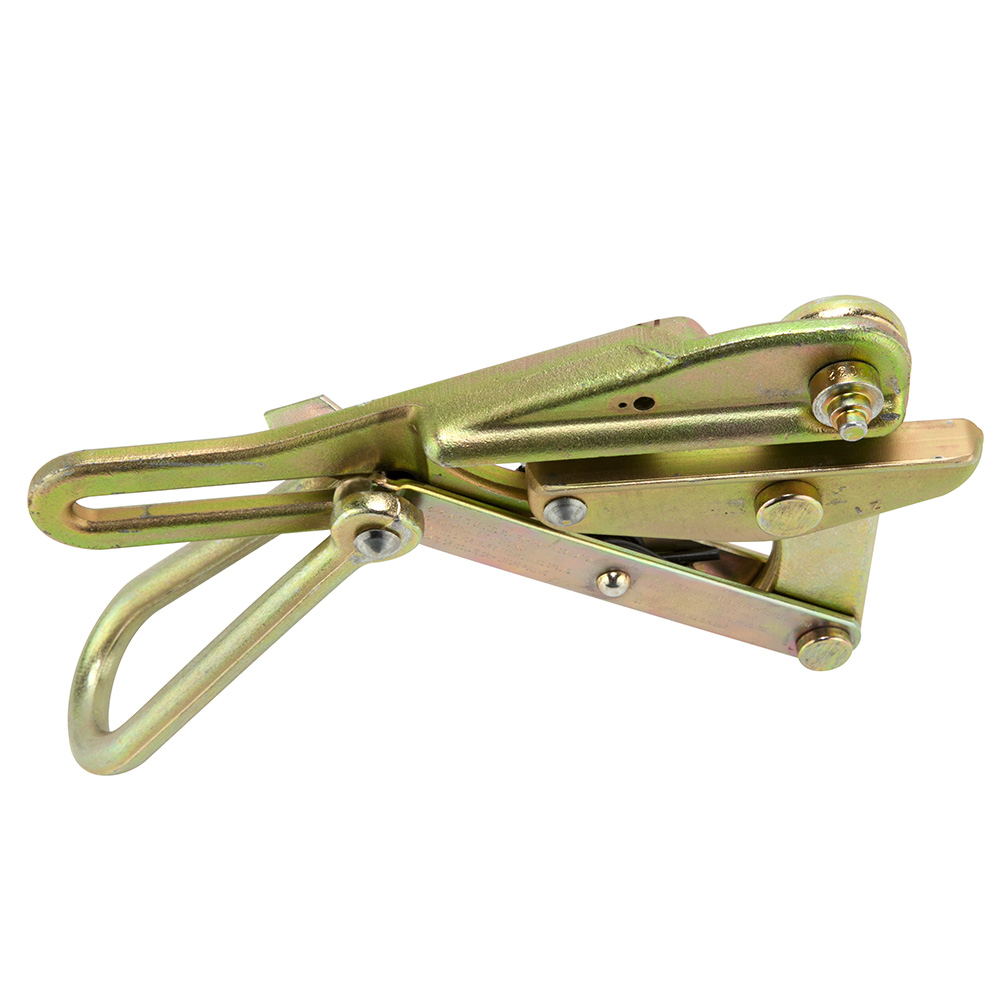

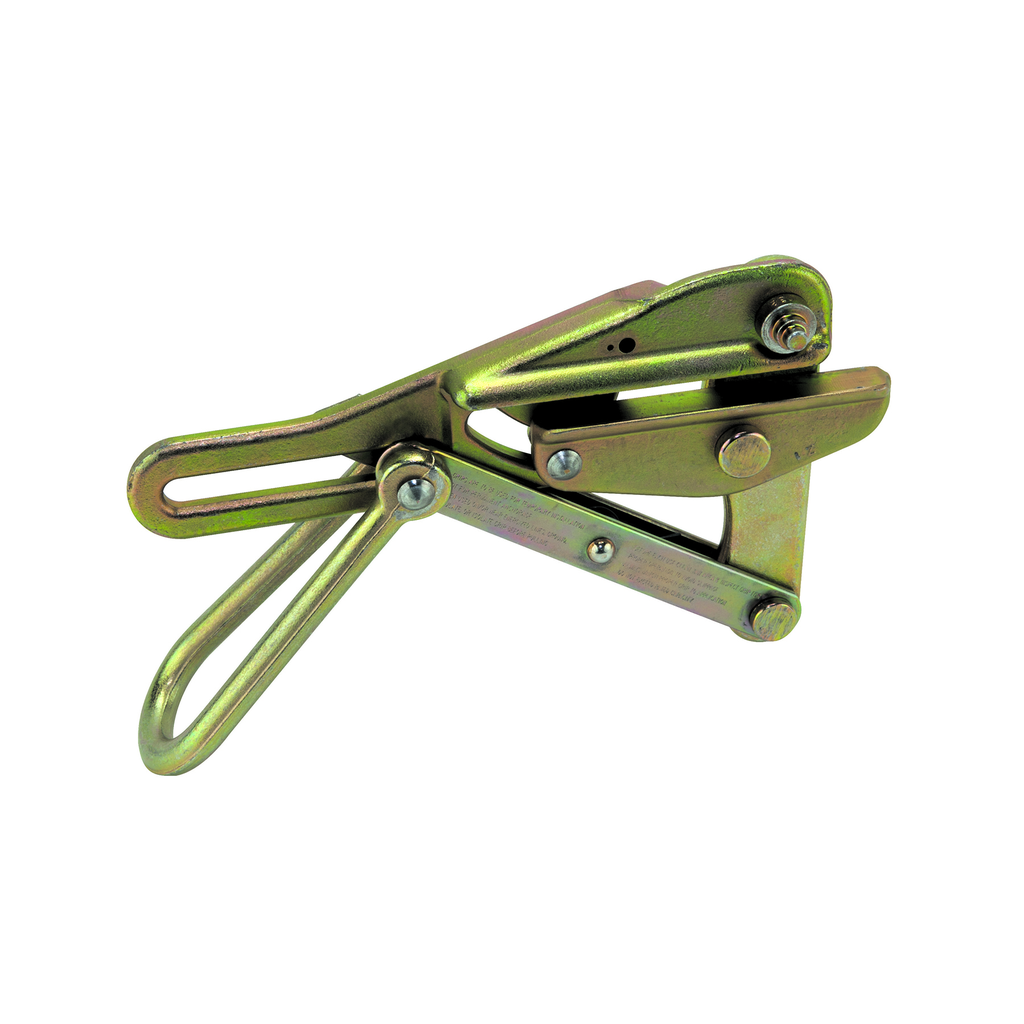

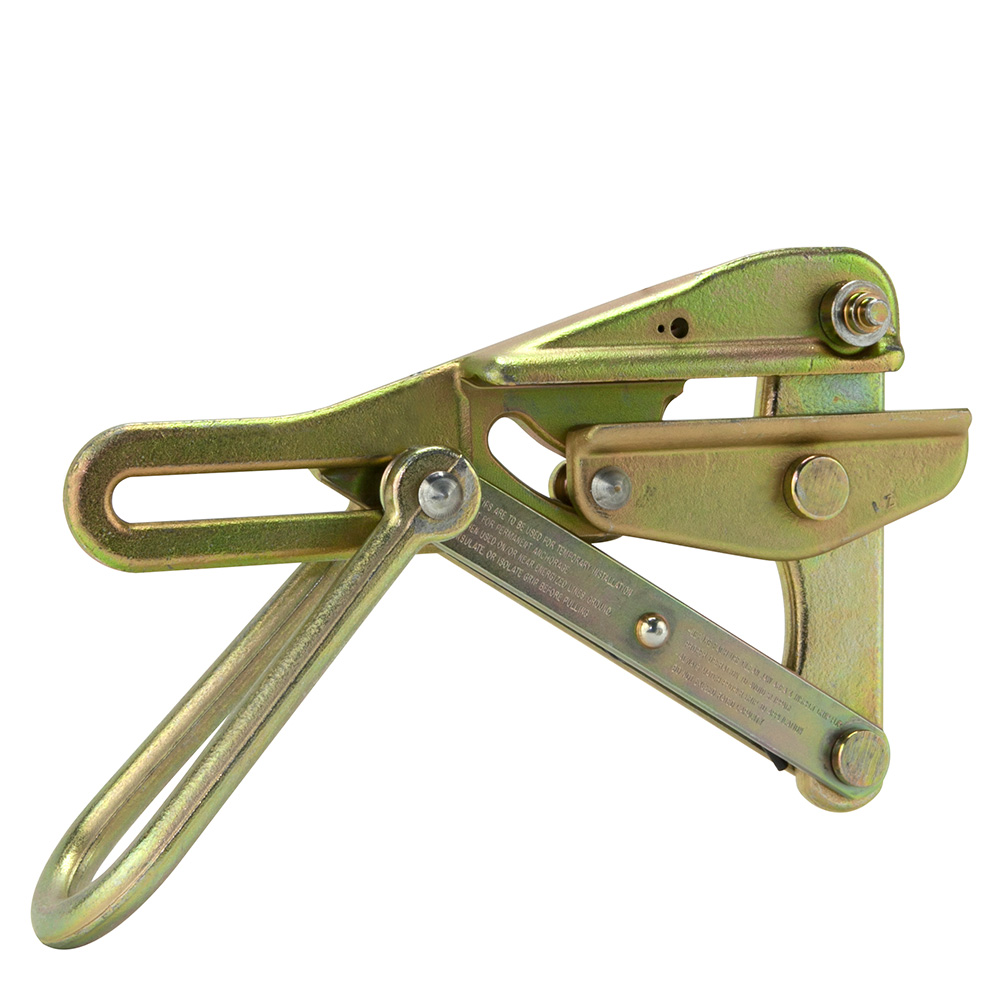

Klein Tools, 1613-35, Chicago Grip, #6 to #8 AWG, 4500 lb, Steel, Single V groove

Finding the best grip to pull small copper can be challenging. Copper stretches over time becoming too thin for some grips which may cause slippage. Some smaller grips are harder to manipulate when wearing rubber gloves and are not hot latch compatible. Using a grip that's too big, too strong or too aggressive could damage the cable. Klein Tools' 1613 Series Bare Wire Chicago Grip is big enough to work with gloves but small enough to pull #6 and #8 copper without damaging it. It's just right for the job.

Features

• Single V groove jaw contour
• Made in USA
• Hot latch version available (Cat. No. 1613-35H)
• Pulls #6 to #8 AWG bare copper wire with max safe load of 4500-Pound (2100 kg)
• Locking loop handles allow the jaws to be held in an open position for easy placement on wire or cable

Warnings

• Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
• Always match proper size and type of grip to application.
• When used on/near energized lines, ground, insulate, or isolate grip before pulling.
• Do not exceed rated capacity.
• Grips are to be used for temporary installation, not for permanent anchorage.

• Maximum Safe Load: 4500 lb (2041 kg)
• Cable Diameter: 0.1285 in to 0.162 in (3.3 to 4.06 mm)
• Wire Size: #6 to #8 AWG
• Jaw Type: Single V groove
• Locking Handle: Yes
• Material: Steel
• Overall Length: 12.6 in (32 cm)
• Width: 4.05 in
• Height: 1.8 in
• Overall Height: 4.6 in (11.7 cm)
• Jaw Length: 4.188 in (10.6 cm)
• Depth: 7.65 in
• Cable Type: Copper, ACSR
• Teeth Type: Smooth
• Spring: Yes
• Hot Latch: No
• Swing Latch: No
• Type: Chicago Grip
• Application: Wire Pulling
• Country of Origin: USA
