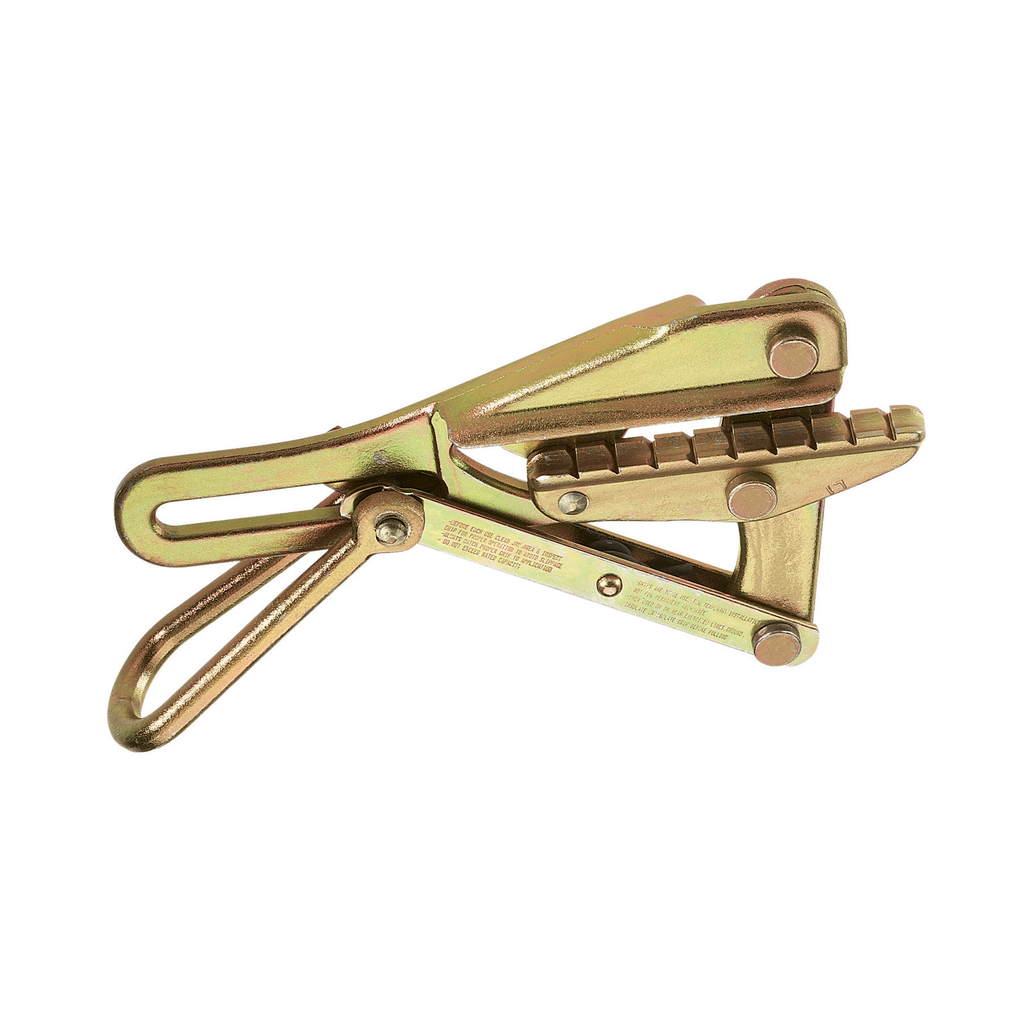

Klein Tools, 1611-40, Chicago Grip, 0.53 to 0.74 in Cable Diameter, 8000 lb Max Load, Notched Jaw, Steel

Klein Tools' 1611 Series Chicago Grips have a round inside jaw contour designed to hold weatherproof strand and solid coated wire. They also have a notched jaw to provide a firm grip on insulation. All Klein grips are manufactured from custom drop-forged steel that is machined and heat treated for excellent durability. Each grip is individually hand inspected and actuated for proper function. Grips are also rigorously tested and pulled to rated load to ensure the highest quality and reliability.

Note

• Due to various types of weatherproof coatings available, selection of proper grips is determined by outside diameter of cable

Warnings

• Always match proper size and type of grip to application.
• When used on/near energized lines, ground, insulate, or isolate grip before pulling.
• Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
• Grips are to be used for temporary installation, not for permanent anchorage.
• Do not exceed rated capacity.

Features

• Notches in jaw provide firm grip on insulation
• Manufactured from drop-forged, heat-treated steel for excellent durability
• Works on 0.53 to 0.74-Inch (13.46 to 18.80 mm) cable diameter range
• Round inside jaw contour for weatherproof coated wire
• Weatherproof
• Made in USA

• Maximum Safe Load: 8000 lb (3629 kg)
• Cable Diameter: 0.53" to 0.7" (13.46 to 17.78 mm)
• Jaw Length: 5.688 in (14.5 cm)
• Width: 4.95 in
• Depth: 10.8 in
• Height: 1.584 in
• Weight: 7.425 lb
• Type: Chicago Grip
• Application: Wire Pulling
• Material: Steel
• Cable Type: Copper, ACSR, AAC
• Teeth Type: Notched
• Jaw Type: Round
• Spring: Yes
• Locking Handle: Yes
• Swing Latch: No
• Hot Latch: No
