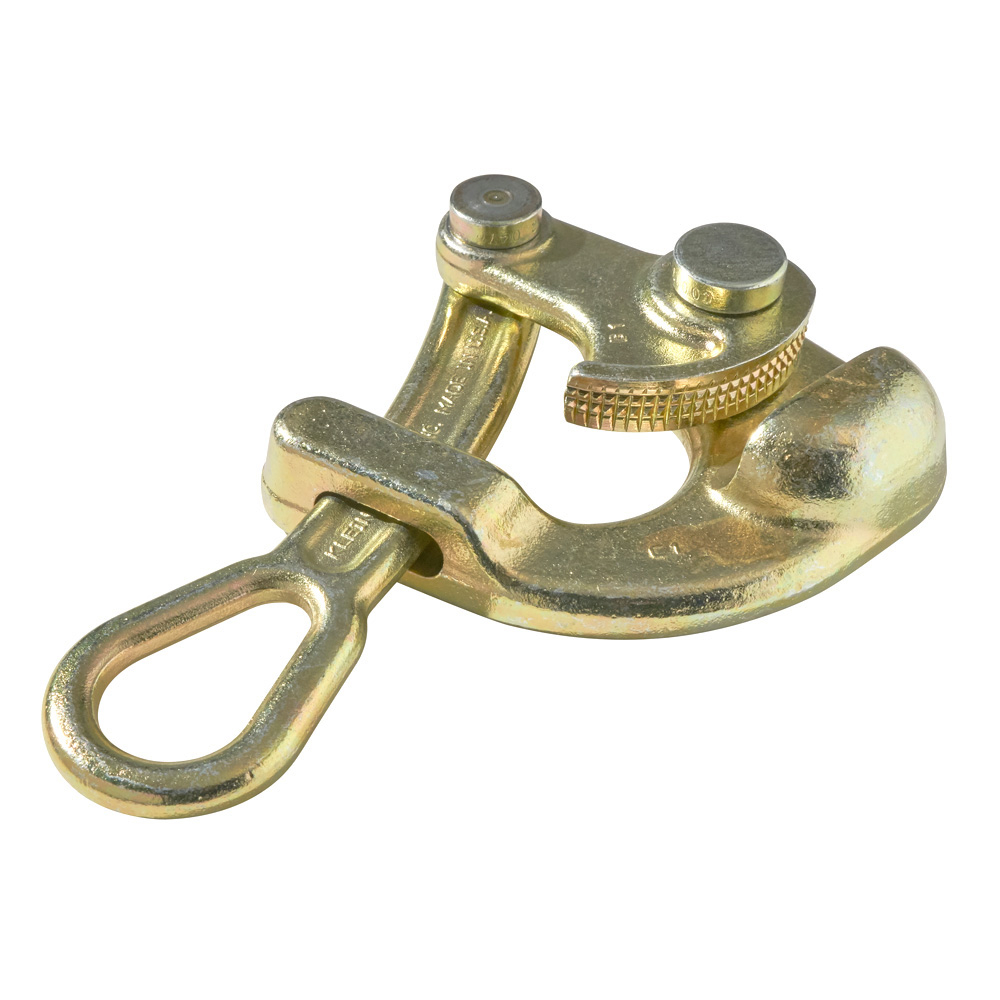

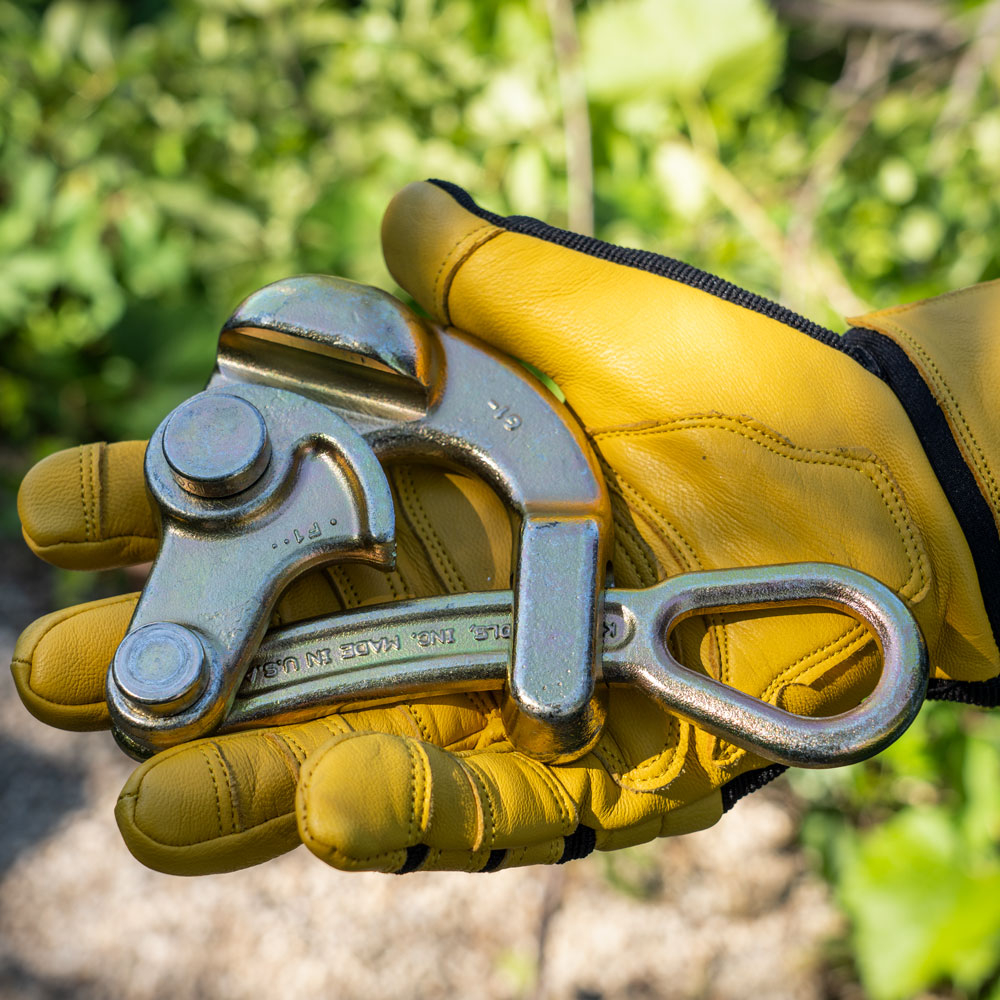

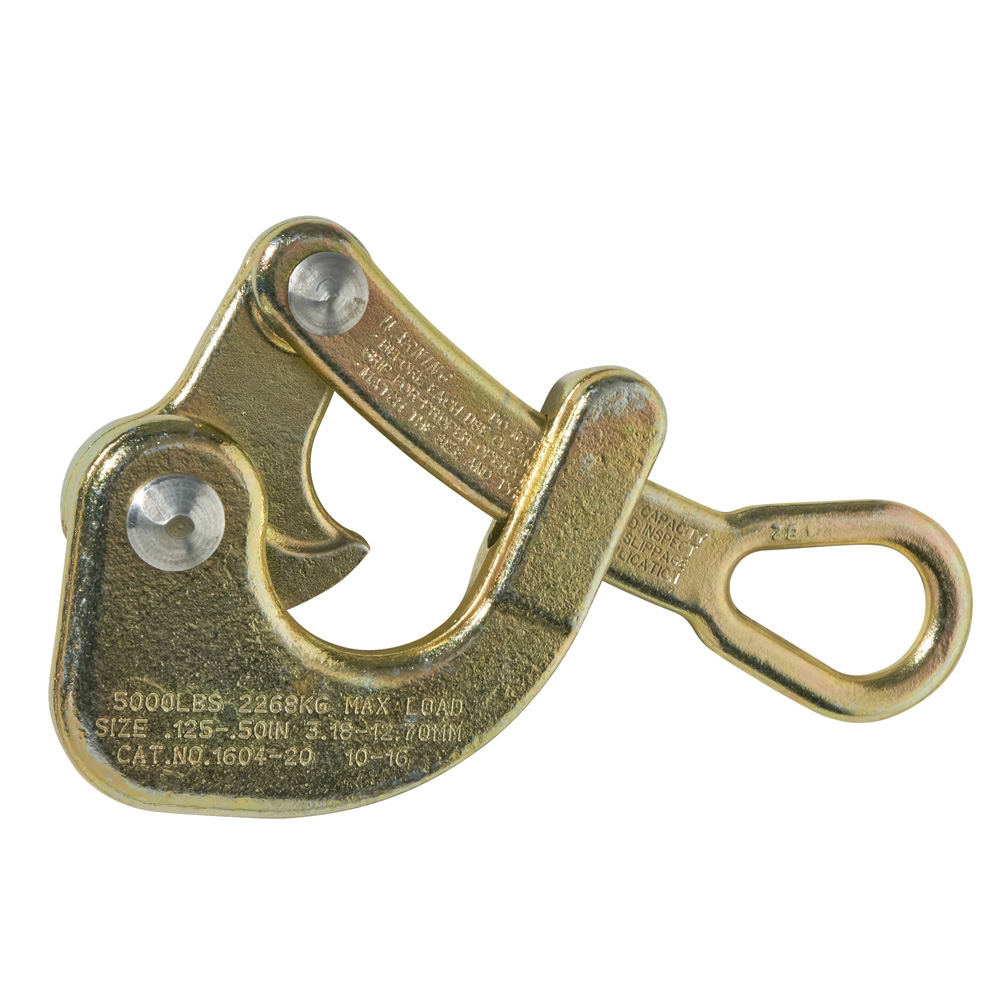

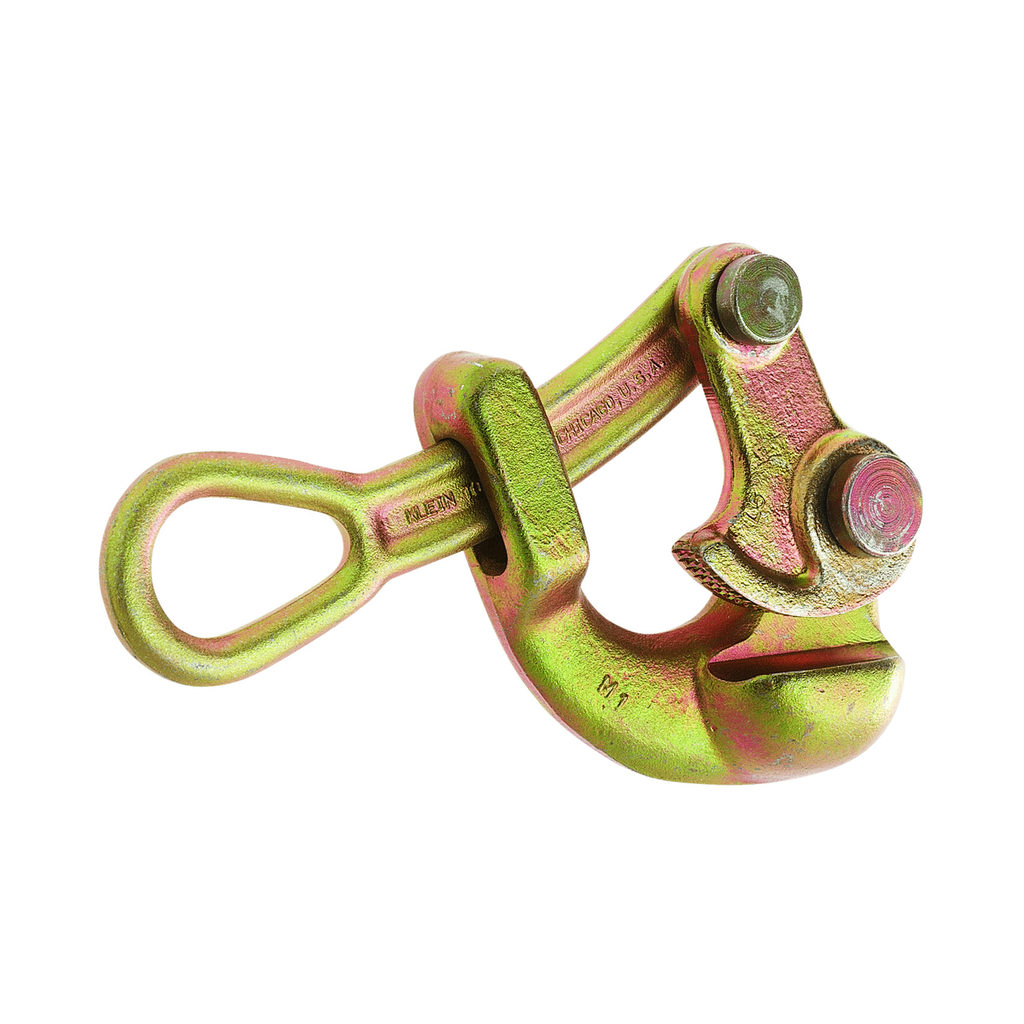

Klein Tools, 1604-20, Haven's Grip, 5000 lb; 0.125 to 0.5 in; Steel; Wire Pulling

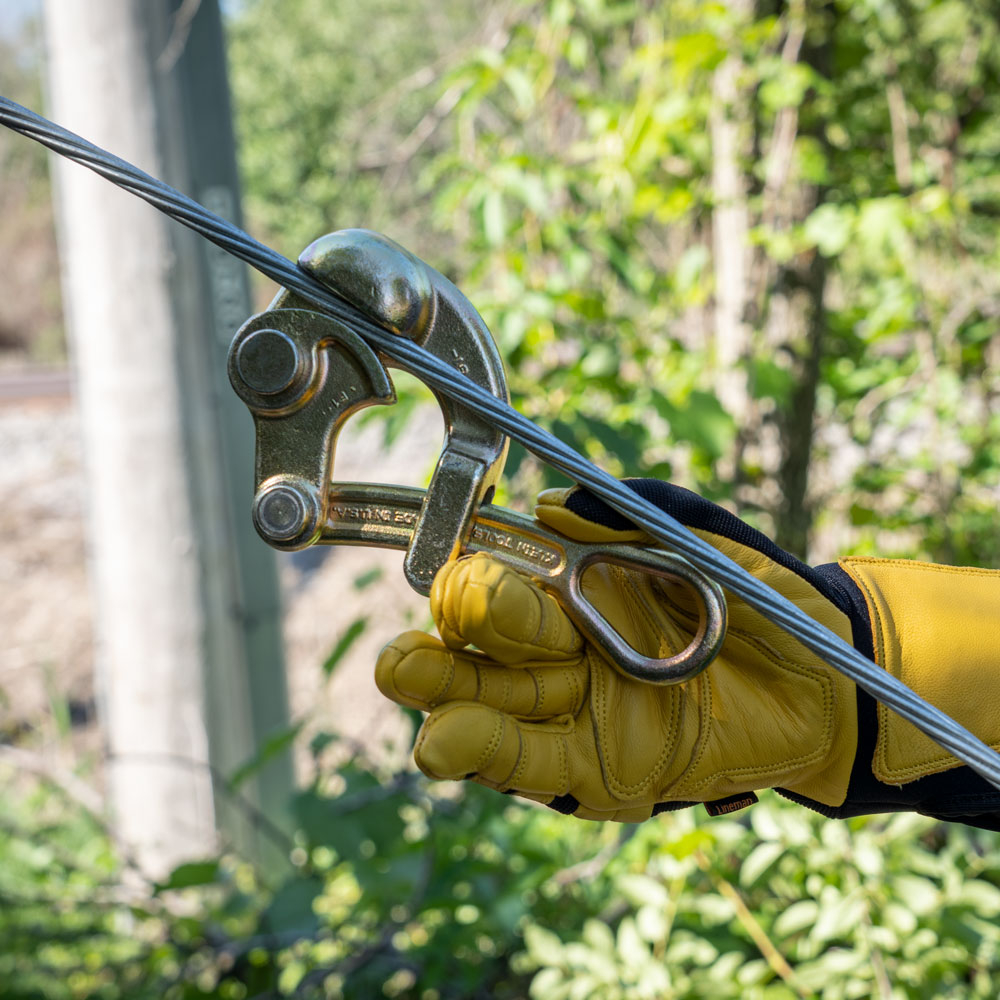

Klein Tools' 1604 Series Messenger and Guy Strand Haven's® Grips are designed for use when a light, compact grip is desired, and where cable deformation is not a factor. They are recommended for use with steel strand cables. All Klein grips are manufactured from custom drop-forged steel that is machined and heat treated for excellent durability. Each grip is individually hand inspected and actuated for proper function. Grips are also rigorously tested and pulled to rated load to ensure the highest quality and reliability.

Features

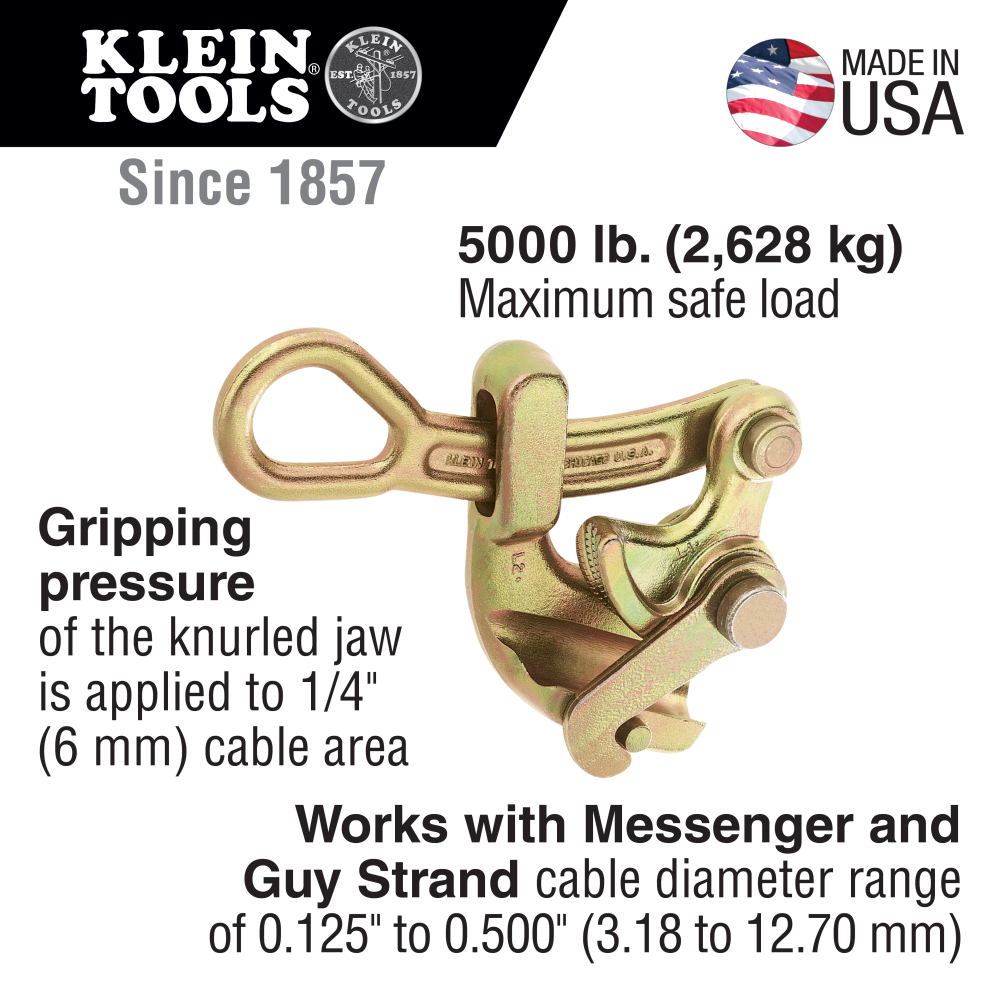

• Works with Messenger and Guy Strand cable diameter range of 0.125 to 0.500-Inch (3.18 to 12.70 mm)
• Made in USA
• Rigorously tested and pulled to rated load to ensure the highest quality and reliability
• Gripping pressure of the knurled jaw is applied to 1/4-Inch (6.35 mm) cable area
• Designed for use when light, compact grip is desired and where conductor damage is not a factor
• Individually hand inspected and actuated for proper function
• Maximum safe load of 5000-Pound (2268 kg)

Warnings

• When used on/near energized lines, ground, insulate, or isolate grip before pulling.
• Always match proper size and type of grip to application.
• Do not exceed rated capacity.
• Grips are to be used for temporary installation, not for permanent anchorage.
• Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.

• Maximum Safe Load: 5000 lb (2268 kg)
• Application: Wire Pulling
• Cable Diameter: 0.125" to 0.5" (3.18 to 12.7 mm)
• Overall Length: 8.75" (22.2 cm)
• Depth: 7.65 in
• Overall Height: 3.75" (9.5 cm)
• Overall Width: 1.75" (4.4 cm)
• Weight: 2.214 lbs (1.0 kg)
• Jaw Length: 0.25" (6.4 mm)
• Jaw Type: Curved
• Teeth Type: Aggressive
• Material: Steel
• Cable Type: EHS, Guy Strand, Messenger
• Type: Haven's Grip
