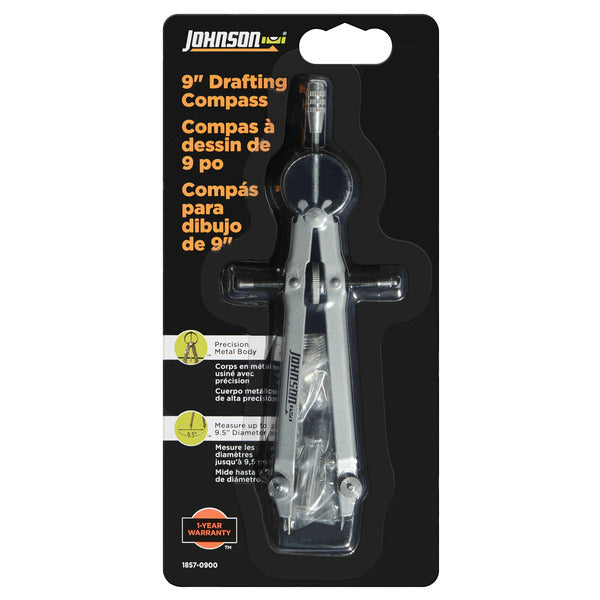

Johnson Level 9" Drafting Compass

Johnson’s 9” drafting compass is ideal for scribing arcs and circles with the steel point producing consistent accurate
markings. Easily adjust the legs for precision drawings and repeat measurements up to 9.5” diameter. Its durable all
metal body with protective finish is resistant to rust and is built to withstand rough jobsites. The non-slip knurled spring
head provides maximum control while adjusting legs to secured position. Comes with replacement lead and locking
hardware for maximum efficiency.
PRODUCT DETAILS
Versatile technical drafting compass is ideal for scribing arcs and circles
Precision metal body
Adjustable center wheel for measuring up to 9.5" diameter
Steel point ensures accurate position
Spring bow head and center wheel locks legs in desired location
Durable finish resists rust and stains
Can also be used for mathematics, drafting, woodworking and measuring distances on maps for navigation
Includes replacement lead and locking hardware
APPLICATION
This versatile drafting compass is ideal for students and is also useful for mathematics, geometry, art, drafting,
architectural design, construction, engineering, woodworking, and measuring distances on maps for navigation. It can
also be used to bisect lines and angles, find midpoints, and help solve problems in geometry.
