DEWALT, PFM1411220, Screwbolt Anchor, 3/8 in; 2.5 in, Zinc-Plated, Carbon Steel, Concrete & Masonry

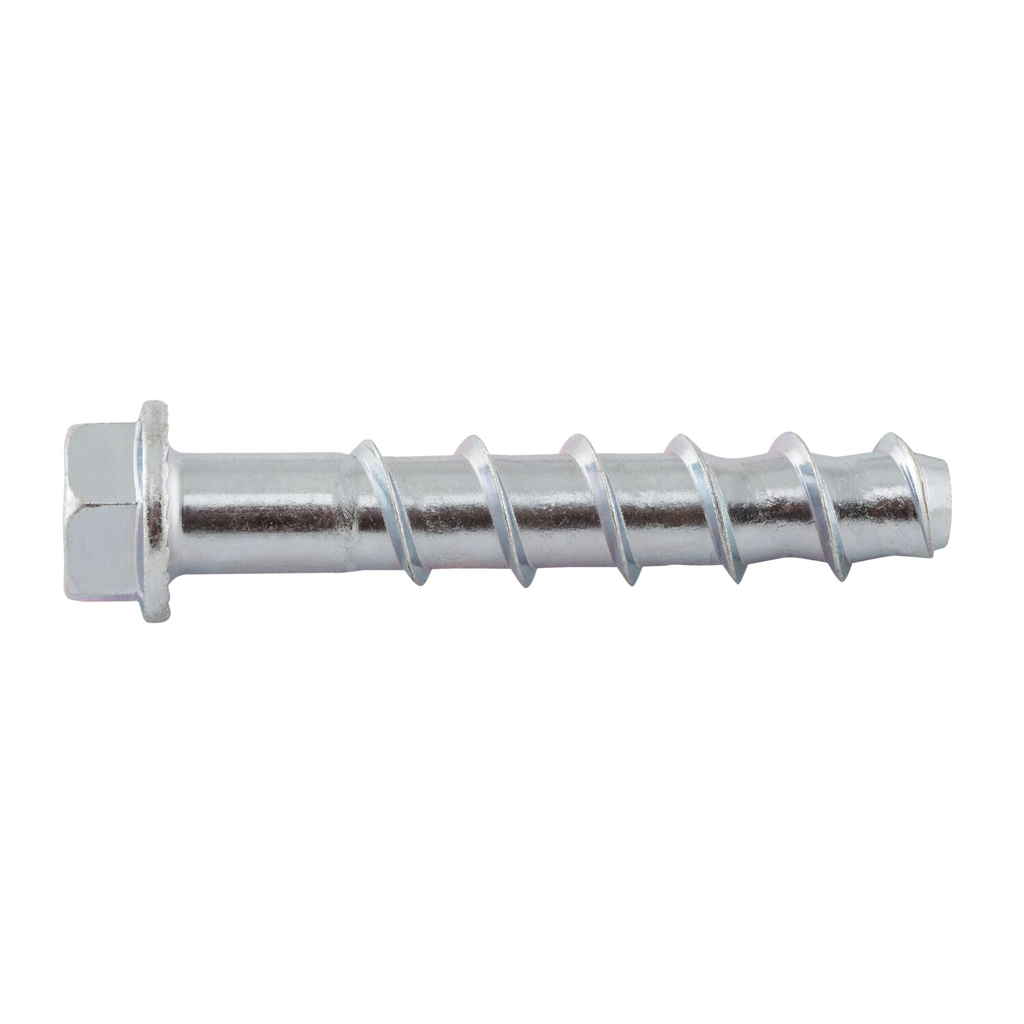

The Screw-Bolt+ anchor is a one piece, heavy duty screw anchor with a finished hex head or flat head (countersunk). It is simple to install, easy to identify and fully removable. The patented thread design, designed for use with standard ANSI drill bits, reduces installation torque and enhances productivity. The steel threads along the anchor body tap into the hole during installation to provide keyed engagement and allow for reduced edge and spacing distances. The Screw-Bolt+ is available as bright zinc-plated or mechanically galvanized plating. Suitable base materials include normal-weight concrete.

Features

• Patented thread design offers toughened threads for tapping high strength concrete
• Low installation torque in concrete and masonry
• Can be installed closer to a free edge than traditional expansion anchors
• Ratchet teeth on underside of hex washer head lock against the fixture
• Designed for standard ANSI tolerance drill bits
• Universal product for concrete and grouted/solid masonry

Disclaimer

• NULL

• Fastener Length: 2.5 in
• Product Primary Material: Carbon Steel
• Product Finish: Bright zinc-plated, mechanically galvanized
• Connection Design: Concrete & Masonry
• Anchor Type: Screw anchor
• Application Base Material: Normal-weight concrete, grouted/solid masonry
• Weight: 0.101 lbs
• Country of Origin: Taiwan
