DEWALT, DCE600D1K2, Hydraulic Knockout Tool Kit, 20V MAX, 1/2'' - 2'' Punches & Dies, 11 tons

The DEWALT 20V MAX Hydraulic Knockout Tool (DCE600) delivers up to 11 tons of force output, providing the ability to perform heavy-duty applications in a lightweight design. The DCE600 knockout dies contain embedded magnets which securely attach to mild steel, to maximize precision in punch alignment. Punches split slugs ranging from 1/2'' - 2'', allowing ease of use in disassembling the system once the knockout is completed. The tool's inline design, 180° rotating head, and ability to set up the punch and die system without the weight of the tool provides versatility in the knockout process flow. The DCE600 utilizes DEWALT's 20V MAX system, it joins 300+ products in the DEWALT 20V MAX line, each engineered to meet the specific needs of demanding trades.

Features

• Punches up to 10 gauge mild steel and 12 gauge stainless steel
• Shoulder strap and connection ring for portability
• Detent head securely holds cylinder in place before, during, and after punch completion
• Made in USA with global materials (tool only)
• CrimpConnect software provides detailed reports of work done
• Threadless draw stud connection allows punch and die setup without weight of the tool
• Embedded magnets in dies for precise punch setup
• Asset management on the jobsite: chip pocket accepts Tool Connect Chip and connects with Tool Connect site manager app for seamless worksite organization (Tool Connect Chip included)
• Inline body and 180° rotatable head allows maximum clearance in tight spaces
• Bright LED ring to illuminate work area

Disclaimer

• * Maximum initial battery voltage (measured without a workload) is 20 volts. Nominal voltage is 18. | ** - based on conversion rate of 100 kN to tnf of 100 / 8.896443230521.

Includes

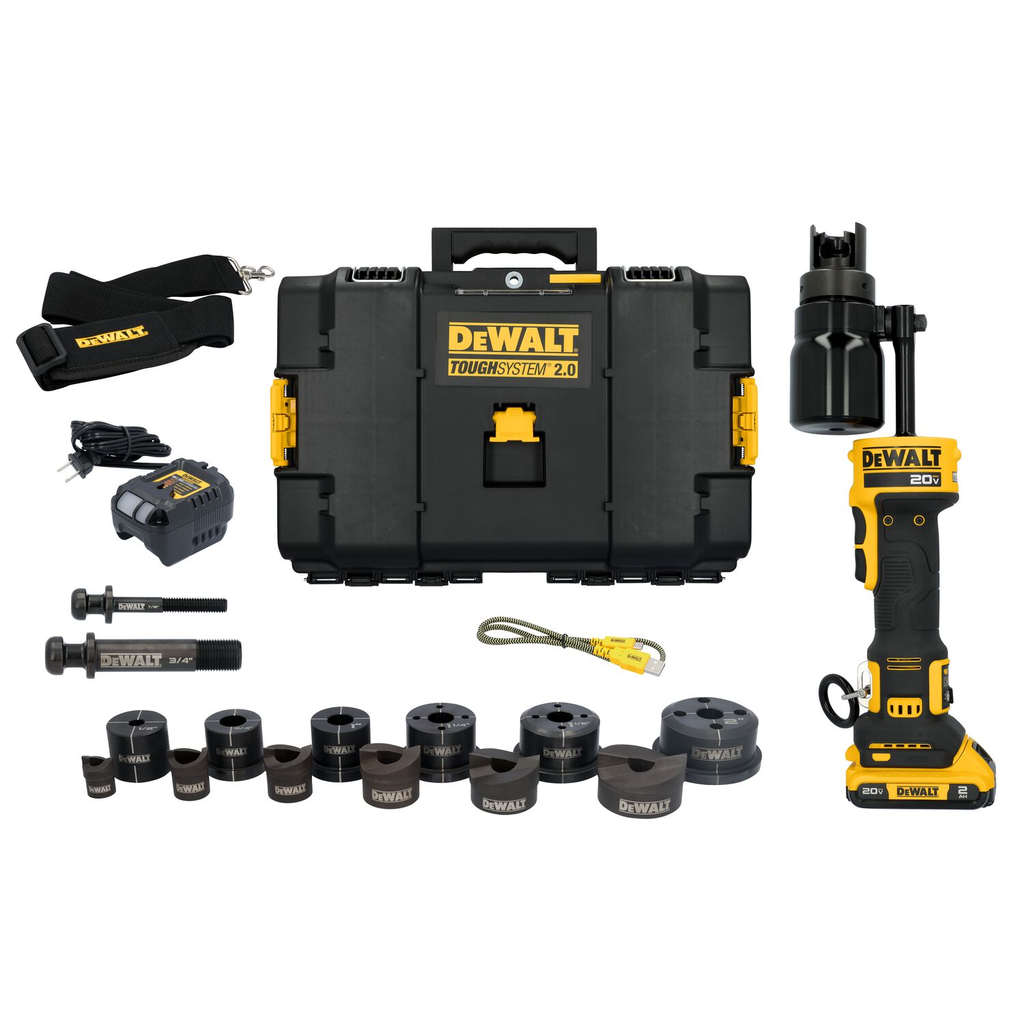

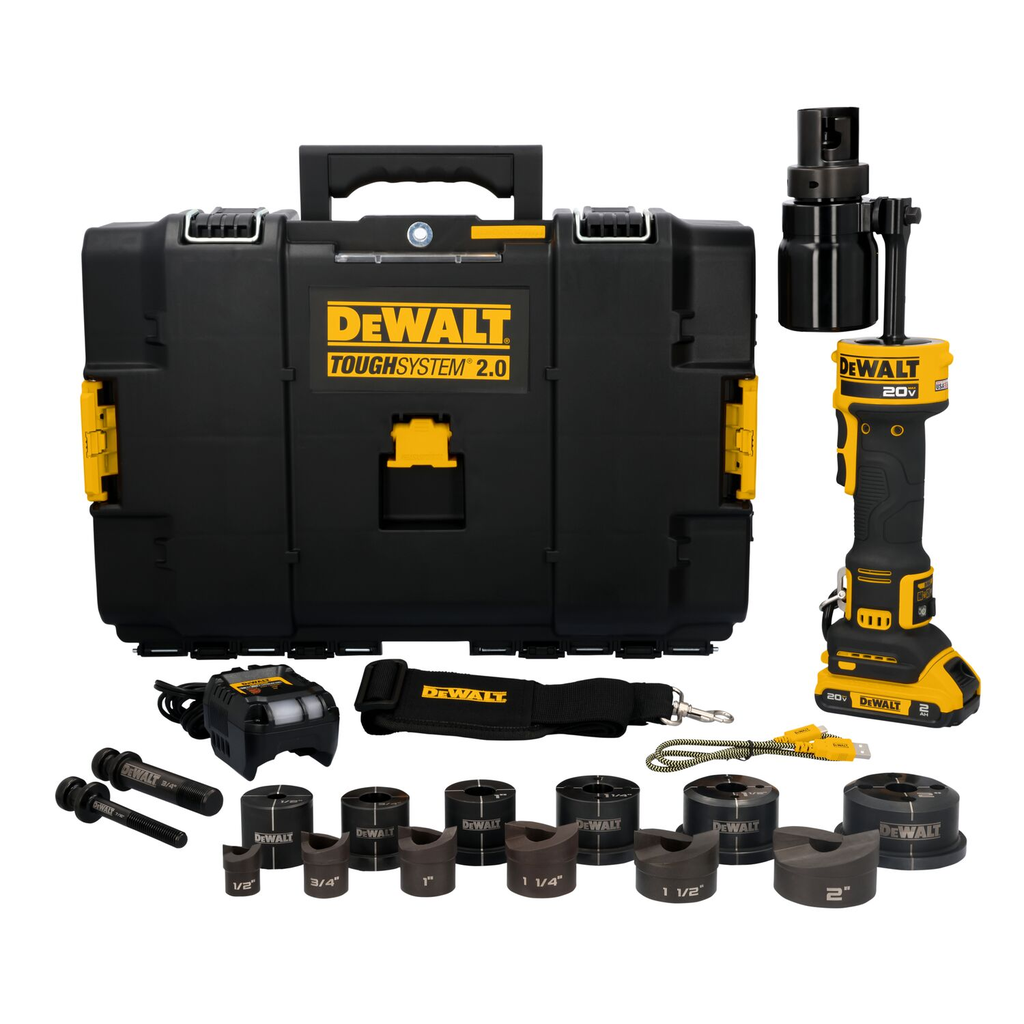

• (1) 2'' Knockout Punch (DCE600200P) | (1) 20V MAX* Hydraulic Knockout Tool | (1) DCB203 2Ah Li Ion Battery | (1) Charger | (1) 7/16'' Knockout Draw Stud (DCE600DS716) | (1) 3/4'' Knockout Draw Stud (DCE600DS34) | (1) Shoulder Strap | (1) USB-C Cable | (1) Tool Connect Chip | (1) TOUGHSYSTEM 2.0 Case | (1) 1/2'' Knockout Die (DCE600012D) | (1) 1/2'' Knockout Punch (DCE600012P) | (1) 3/4'' Knockout Die (DCE600034D) | (1) 3/4'' Knockout Punch (DCE600034P) | (1) 1'' Knockout Die (DCE600100D) | (1) 1'' Knockout Punch (DCE600100P) | (1) 1-1/4'' Knockout Die (DCE600114D) | (1) 1-1/4'' Knockout Punch (DCE600114P) | (1) 1-1/2'' Knockout Die (DCE600112D) | (1) 1-1/2'' Knockout Punch (DCE600112P) | (1) 2'' Knockout Die (DCE600200D)

• Voltage: 20V MAX
• Force Output: 11 tons
• Length: 23.060 in
• Height: 15.380 in
• Width: 7.670 in
• Weight: 31.280 lbs
• Battery Watt Hours: 40
• Punch Size Range: 1/2 in - 2 in
• Punch Material Rating: 10 gauge mild steel, 12 gauge stainless steel
• Rotation: 180° rotatable head
• Country of Origin: United States
