Bosch, HDC100, Dust Collection Attachment, Maximum Bit Diameter 3/4 in, Maximum Drilling Depth 4-3/4 in, Dust Port Size 1-3/8 in

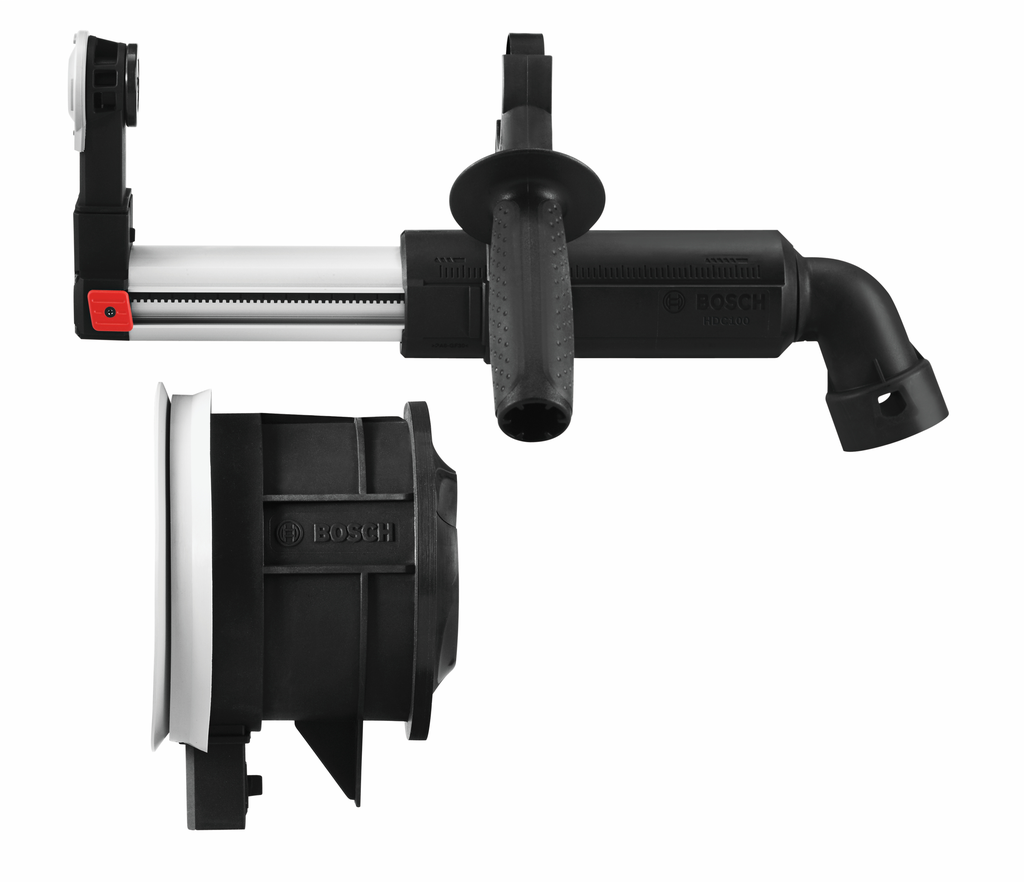

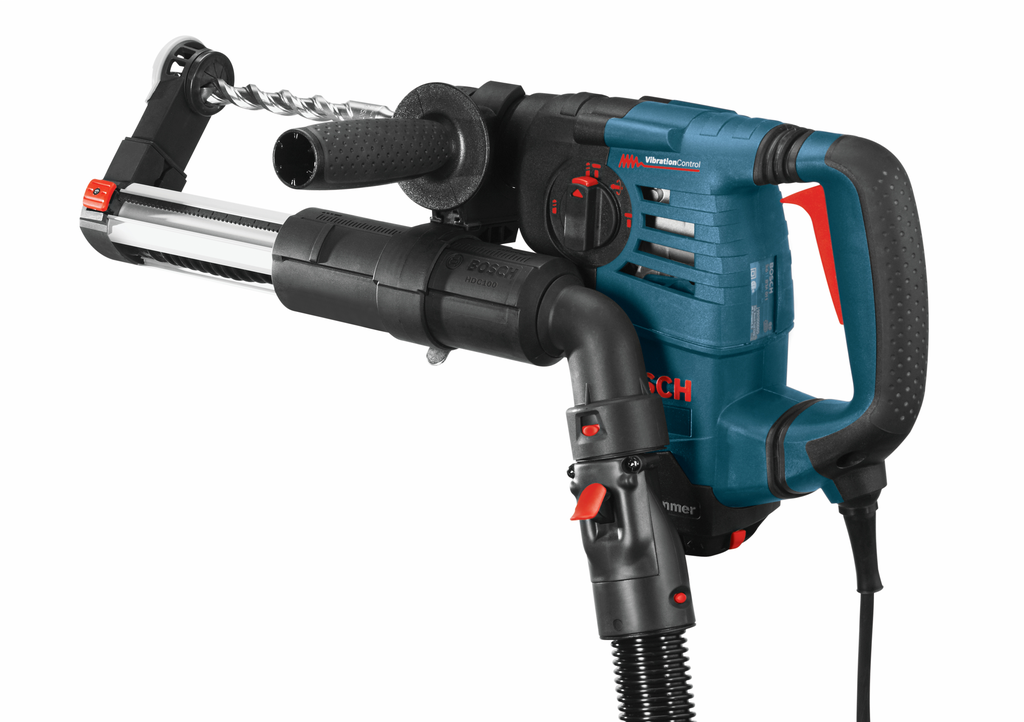

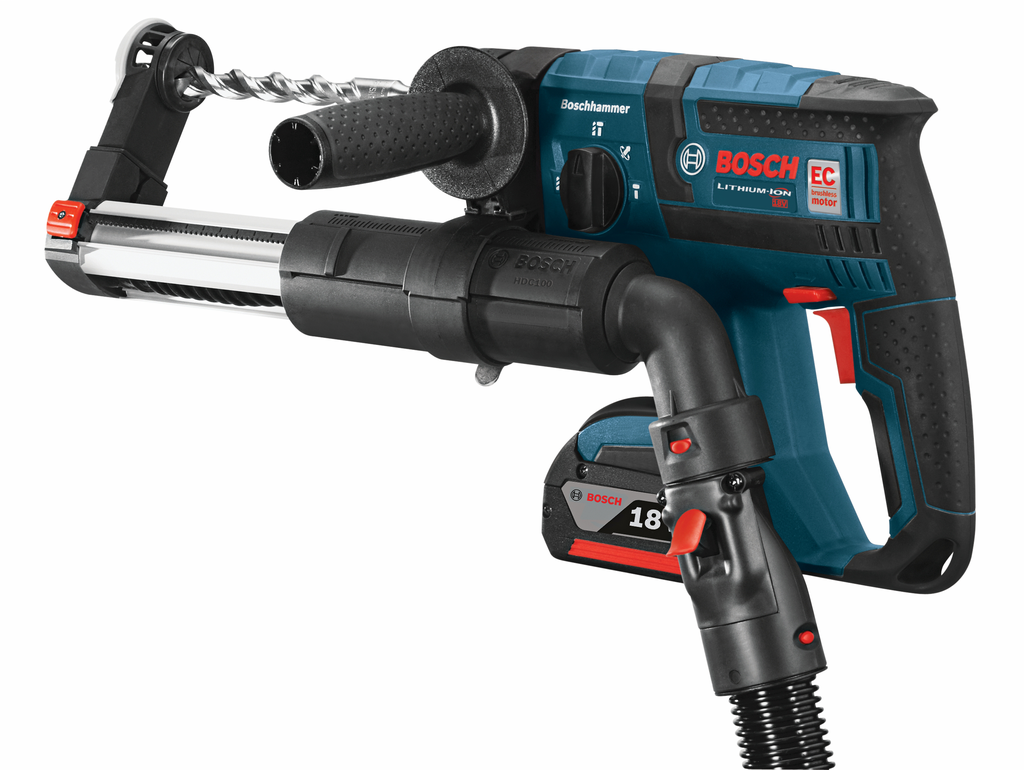

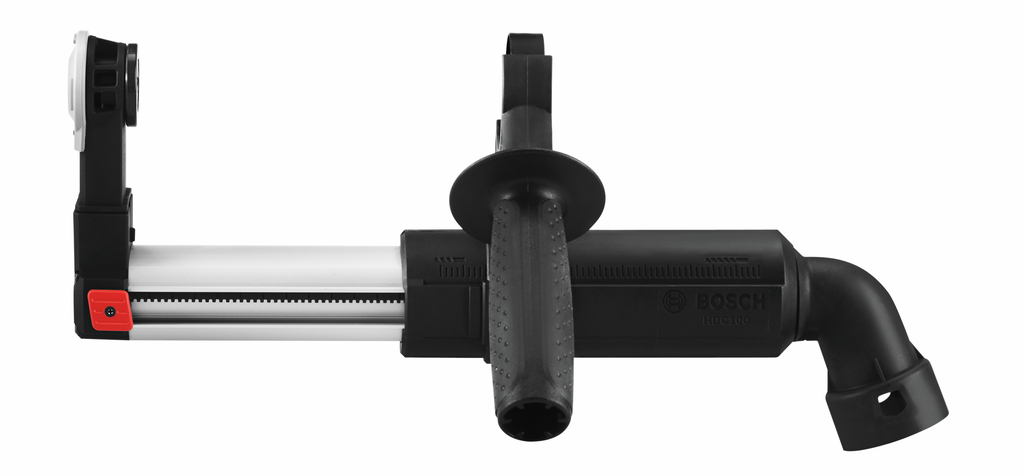

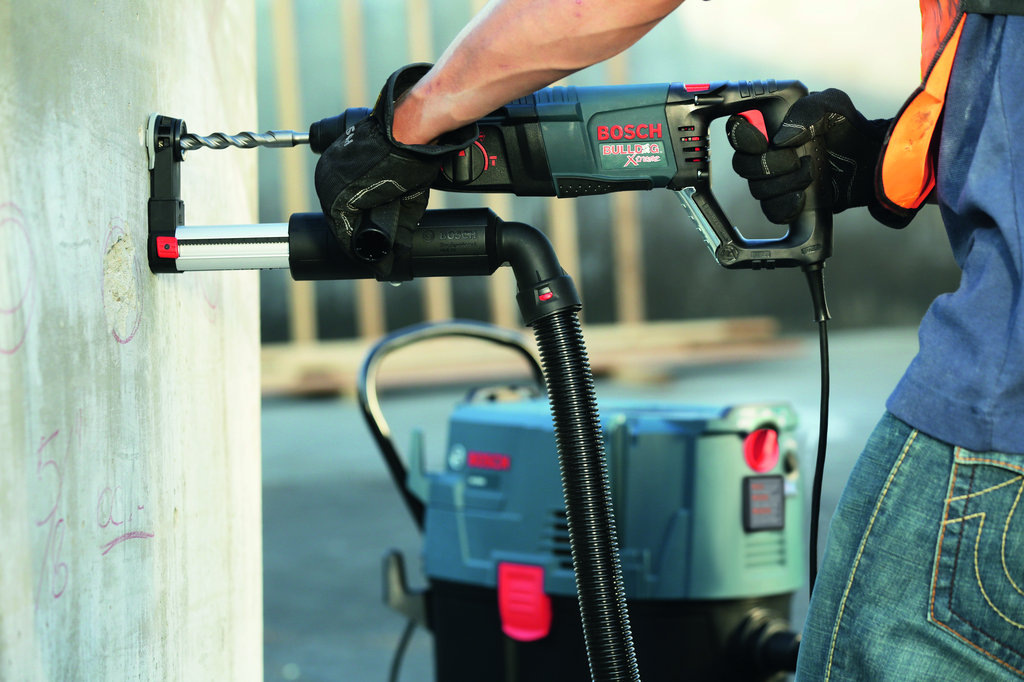

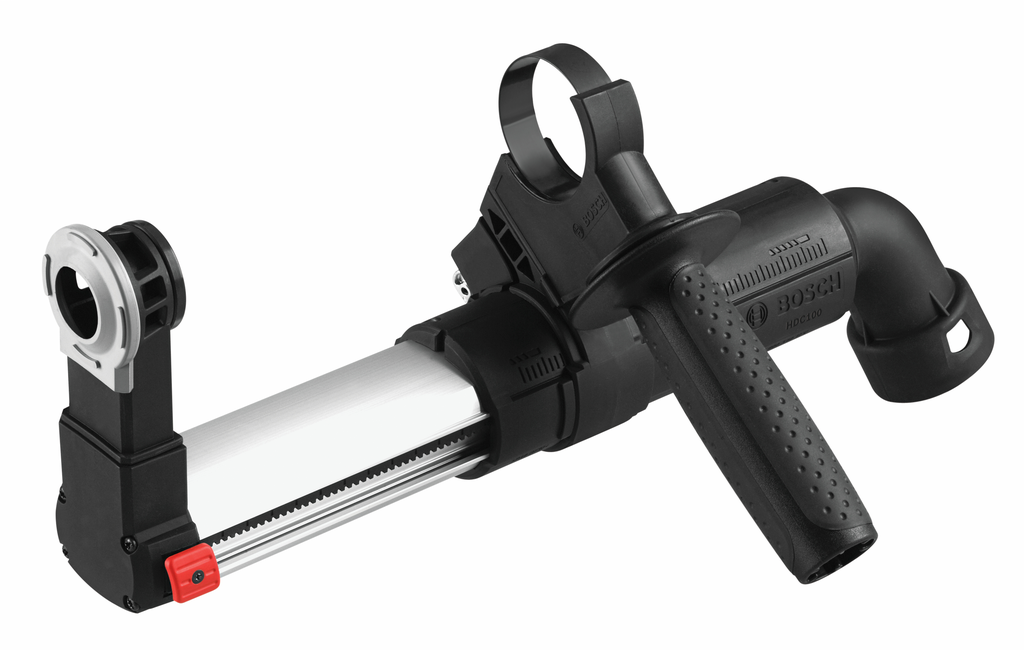

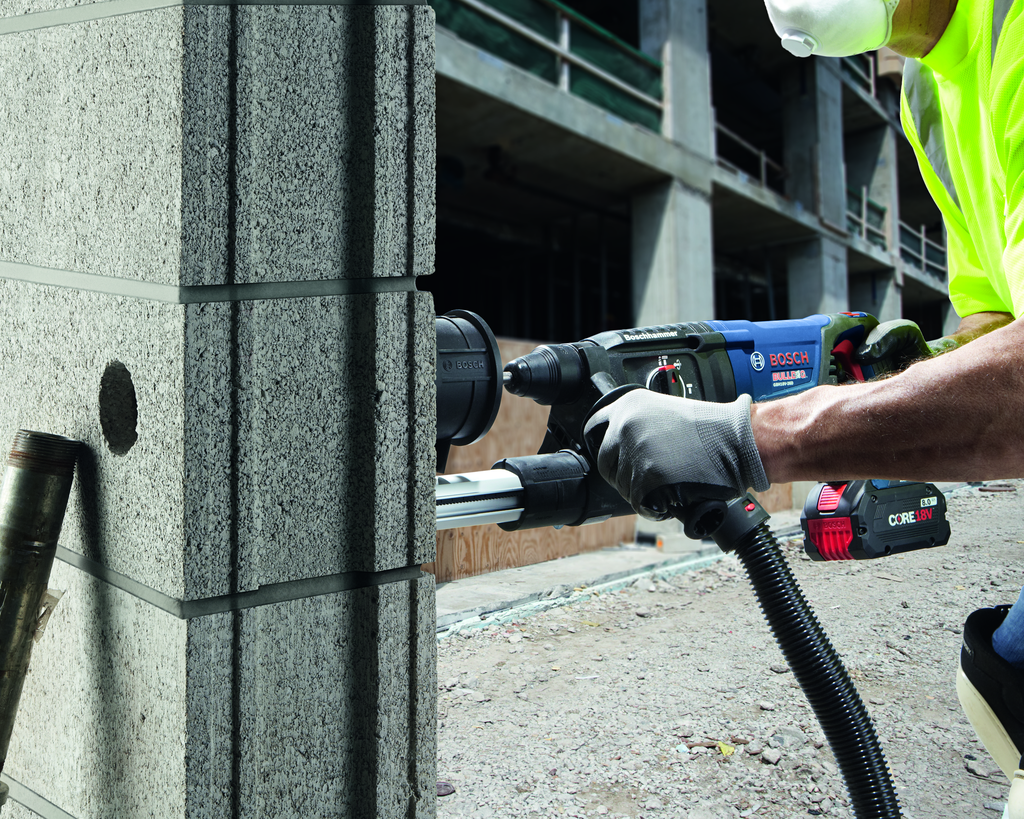

The Bosch HDC100 SDS-plus® Dust-Collection Attachment provides excellent dust collection when drilling with Bosch hammers. This attachment fits most new Bosch SDS-plus® hammers, coupling via a unique side-handle interface. The attachment has a metal telescoping arm for precise retraction and can accommodate up to a 4-3/4-In. drilling depth, and it can be adjusted forward or back with a clamping band to accommodate a variety of bit lengths. The dust port can be hooked up to a 1-3/8-In. vacuum hose nozzle, or it can accommodate 1-1/4-In. or 2-In. nozzles when combined with an appropriate optional adapter.

Features

• Maximum bit diameter is 3/4-in
• Port can be hooked up to a 1-3/8-In. – accommodates 1-1/4-In. or 2-In. nozzles with optional adapter
• Port can be hooked up to a 1-3/8 In. vacuum hose nozzle or can accommodate 1-1/4 In. or 2 In. nozzles when combined with appropriate adaptor
• This attachment is designed for durability, providing metal guide rails for precise drilling and jobsite toughness
• Durable design metal guide rails – allow for precise drilling and jobsite durability
• Adjustable depth adjustment – accommodates desired drilling depth; maximum 4-3/4-In. depth

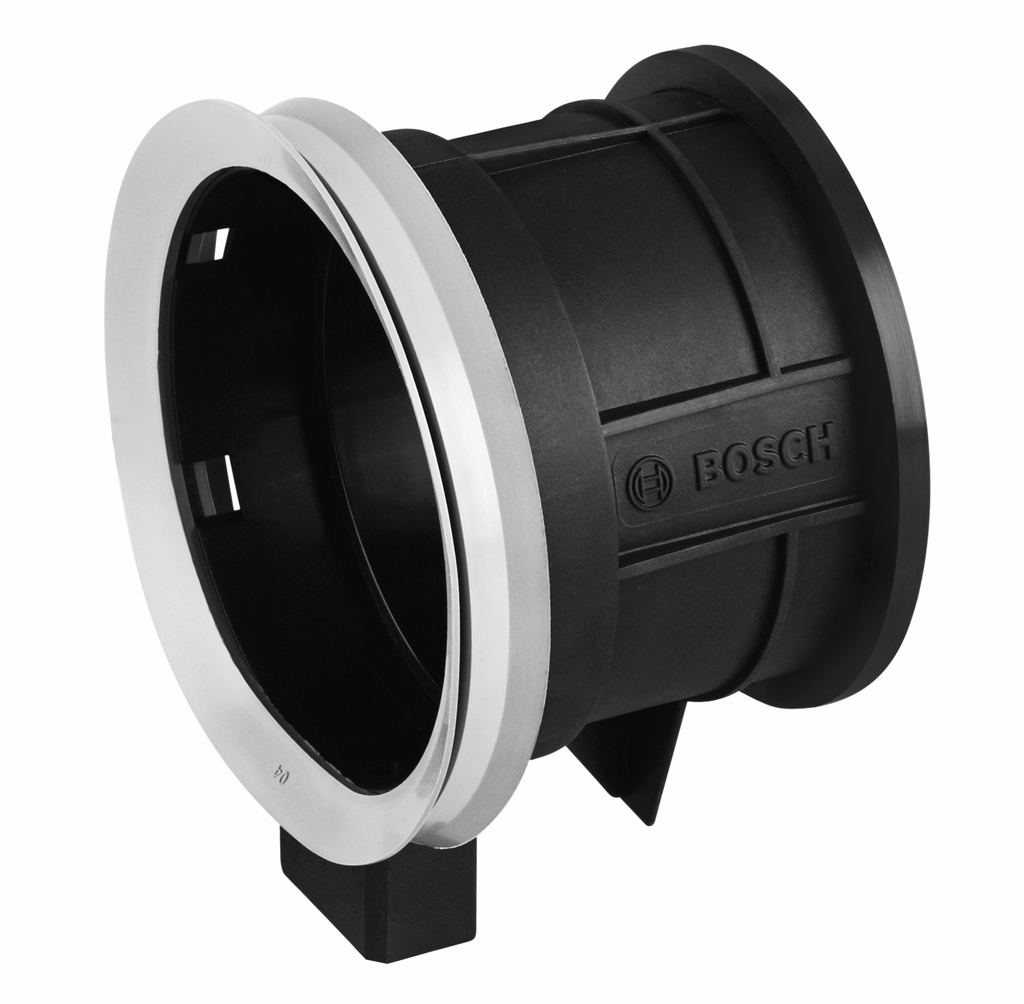

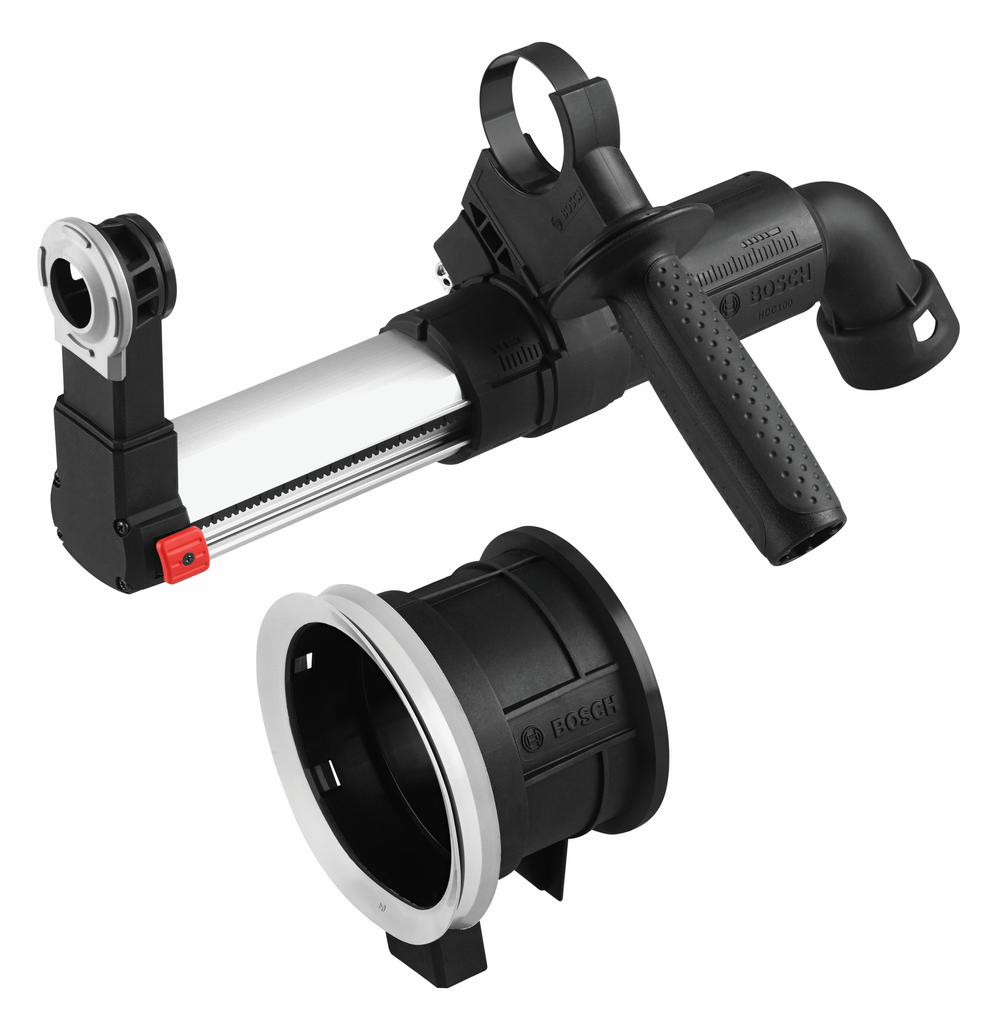

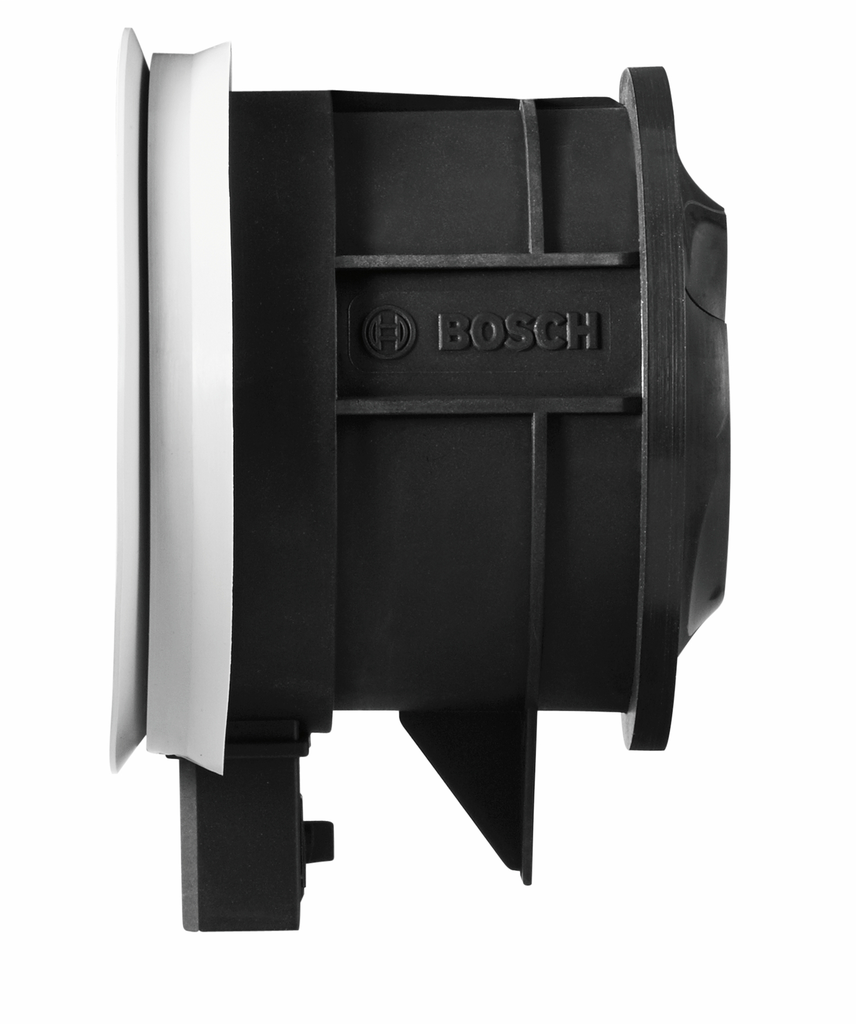

• Two dust caps – one for standard drill bits and one for thin-wall core bits

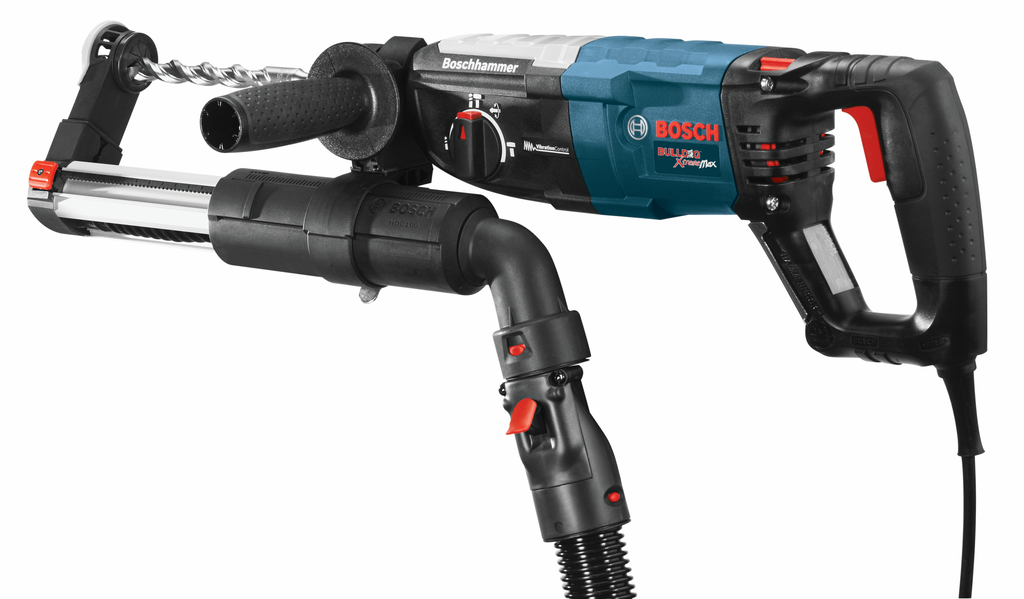

• Flexible system – fits most new Bosch SDS-plus® rotary hammers

• Maximum Bit Diameter: 3/4 in
• Maximum Drilling Depth: 4-3/4 in
• Dust Port Size: 1-3/8 in
• Compatible Nozzle Sizes: 1-1/4 in, 2 in
• Length: 14 in
• Overall Height: 5 in
• Overall Width: 3 in
• Weight: 1.5 lb
• Material: Metal, plastic
• Color / Finish: Black / Silver
• Country of Origin: Germany
• Brand / Model Compatibility: All Bosch newer SDS-plus hammers: 11253VSR, 11255VSR, RH228VC, RH328VC, RH328VCQ, RHH181-01, 11536-C, 11536VSR
• Step Design: No
• Flanged: Not Required
• Filter Element Included: No
• Automatic On / Off: No
• Threaded Inlet: No
• Wet or Dry Application: Dry
• CSA Certified: Exempt
• UL Listed: No
• ETL Listed: No
• Mounting Holes: No
• Accessory Type: Dust Collection
