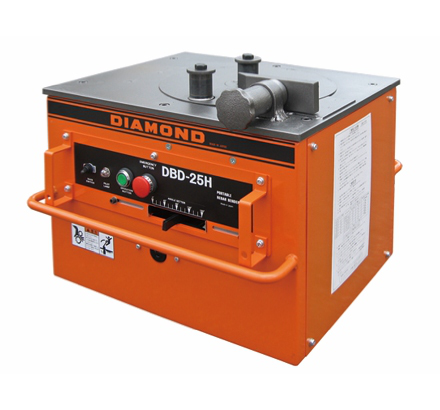

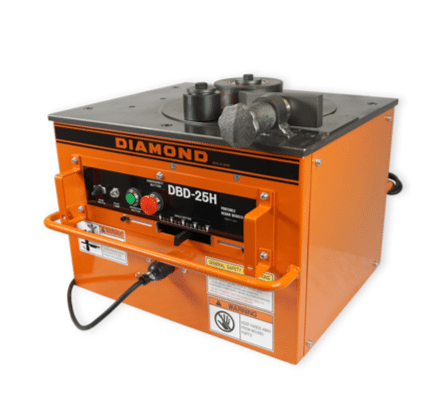

BN Products-USA, DBD-25H, Portable Rebar Bender, 0–180 degrees, 115V 50/60Hz, 9 sec for 180 degree bend, #8 (1 in) Grade 60

This heavy-duty portable bender helps to save valuable man-hours by effortlessly bending rebar up to #8 (1") Grade 60 at job sites or in your shop. This strong electrical-mechanical bender has two preset angle locks for repeating the same angle bend. The lever-type angle selector can be set to accurately bend any angle from 0-180 degrees. Bends (4) each #3 rebar, (3) each #4, (2) each #5 or #6 rebar and (1) #7 or #8 rebar at one time. The roller chart makes it easy to select the correct combination of rollers to achieve an inside bending diameter of six times the rebar diameter. An emergency stop switch and two lifting handles are standard features. The DBD-25H portable rebar bender comes complete with (9) bending rollers in two steel carrying cases, a tool kit, a bender cover, and a standard foot pedal control switch for hands-free bending. Optional circular pattern bending rollers are available. Benner-Nawman backs it with a one-year warranty.

• Bending Angle: 0 – 180 degrees
• Power Supply: 115V 50/60Hz -15 amps
• Bending Speed: 9 seconds for 180 degree bend
• Maximum Bending Diameter: #8 (1 in) Grade 60
• Rebar Capacity per Bend: 4x #3, 3x #4, 2x #5 or #6, 1x #7 or #8
• Inside Bending Diameter: 6x rebar diameter
• Number of Bending Rollers: 9
• Weight: 210 lbs (95 kg)
• Preset Angle Locks: 2
• Material: Steel (carrying cases)

Downloads
